Description

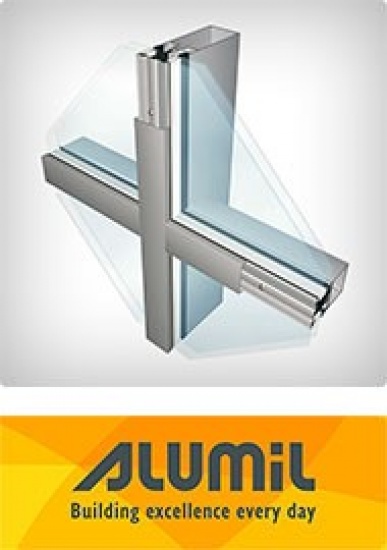

I.CURTAIN WALLS  ALUMIL M6  PROFILES

SYSTEM FEATURES

-M6 is a complete system for curtain wall

-Wide mullions and transoms of 55 mm

-thermal insulation up to Uf = 1.5 W/m2K

-wide variety of mullions  designed specifically to withstand the loads generated by the wind

-wide range of ornamental caps visible on the outside

-Using the same structure of mullions and transoms can achieve structural curtain wall version (no aluminium elements visible on the outside)

-mounting system allows any type of opening in plane parallel openings, tilt, tilt openings with hidden frame)

-the system allows complex patterns (sloping surfaces, polygon)

-the system allows mounting of any types of doors to access the M11500

-exterior visible width :55 mm

-depth mullion 65-223 mm

Depth transom 30-179

Glazing

Stick type with EPDM  gaskets

-glass thnickness 5-56 mm

-Mullions max inertia lx= 2082  ly= 183 cm4

- Transoms max  inertia lx= 568  ly= 64 cm4

- Max inertia  Mullion and Insert  lx= 32  ly= 105 cm4

-Types of vent ;

Fix

Top hung window

POW window

Inwards hinged window

EXTERIOR AESTHETICS

With horizontal and vertical cover ( standard)

With horizontal cover( linear horizontal)

With vertical cover ( linear vertical)

Glass only ( Structural)

PERFORMANCES

- Thermal insulation  - EN ISO 12412-2 Uf = 1,5 – 3,3  W/m2K

- Air permeability  –EN 12157  - Clasa A4

- Watertightness – EN 12154 – Clasa R7

- Resistance to wind load   - EN 13116 -   ±  2,5 KN/ m2

II.CURTAIN WALLS WITH SCHÜCO ALUMINIUM

- SCHUCO FW 50+ STRUCTURAL GLAZING SYSTEM

Providing the building with a flush-fitted all glass look with profiles that are only visible from the inside.

 SYSTEM FEATURES

The same profiles as the Schuco FW50+ system allowing for different structural requirements are met in graduated mullions and transoms dimensions.

Face width 50 mm.

4 to 52 mm thick glass.

System compatible insert units such as concealed windows, open in windows, various     types of doors … etc.

Full structural glazing and semi-structural glazing options.

A uniform external appearance combing the use of fixed glazing units, projected

Top hung vents and glazed spandrel panels, 20 mm joint between glass modules.

-SCHÜCO FW  60+

SYSTEM FEATURES

• Visible Width  : 60 mm

• Large screen widths

• Diversity of design through the variety of plating

• Components for anti-intrusion protection and bulletproof

• High thermal and sound insulation

• simple and fast mounting through processing degree

Comprehensive program of plating of multi-FW 60 + system makes it possible to individualize the almost unlimited curtain walls.
